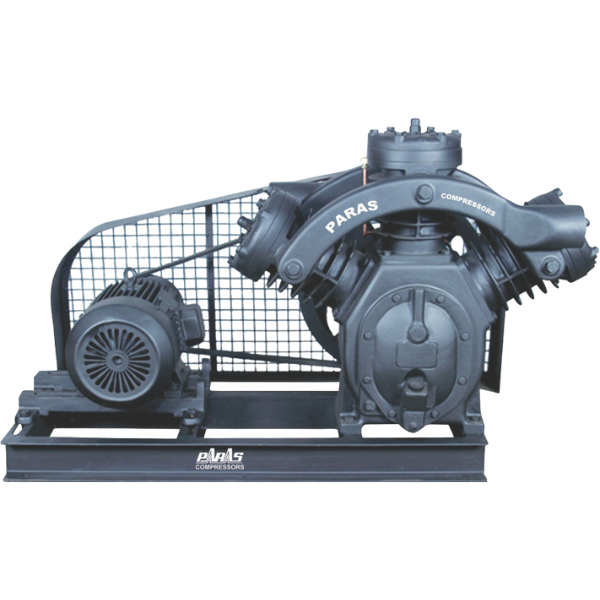

Single & Two Stage Dry Vacuum Pump

Dry Vacuum Pumps

Single-stage and two-stage dry vacuum pumps offer a dependable and versatile solution for a wide range of applications. These positive displacement piston pumps are designed for single-acting operation and air cooling, making them user-friendly and efficient.

Understanding the Stages:

  • Single-Stage Pumps: These pumps utilize a single piston chamber to achieve a vacuum level of up to 29.0 inches of mercury (Hg) at sea level. They are well-suited for tasks requiring moderate vacuum levels.
  • Two-Stage Pumps: By incorporating two piston chambers in series, two-stage pumps achieve a deeper vacuum, reaching up to 29.6 inches of mercury (Hg) at sea level. This enhanced capability makes them ideal for applications demanding a higher level of vacuum.

Dry Vacuum Pump Advantages:

  • Clean and Oil-Free Operation: These pumps eliminate the need for oil lubrication, preventing contamination risks in your vacuum process.
  • Simple and Reliable Design: The positive displacement piston mechanism ensures straightforward operation and dependable performance.
  • Air-Cooled Efficiency: Air cooling eliminates the need for water cooling systems, simplifying setup and maintenance.

Contact us to learn more about how single-stage or two-stage dry vacuum pumps can meet your specific application requirements!

ModelMotor HPNo. of PistonP.D. C.F.M.Vacuum (HG)Bore x Stroke (Inch)
36-325V/VT1.5221.6/10.829/29.23&3 x 2.3/4
37-334V/VT2234.6/17.329/29.23&3 x 2.3/4
38-345V/VT5260/3029/29.25&5 x 3.1/2
39-97SV/VT7.52110/5529/29.25.1/2 & 5.1/2 x 4
40-105S2V/VT103149/9929/29.25.1/2 & 5.1/2 x 4
ModelMotor HPNo. of PistonP.D. C.F.M.Vacuum (HG)Bore x Stroke (Inch)
36-325V/VT1.5221.6/10.829/29.23&3 x 2.3/4
37-334V/VT2234.6/17.329/29.23&3 x 2.3/4
38-345V/VT5260/3029/29.25&5 x 3.1/2
39-97SV/VT7.52110/5529/29.25.1/2 & 5.1/2 x 4
40-105S2V/VT103149/9929/29.25.1/2 & 5.1/2 x 4
