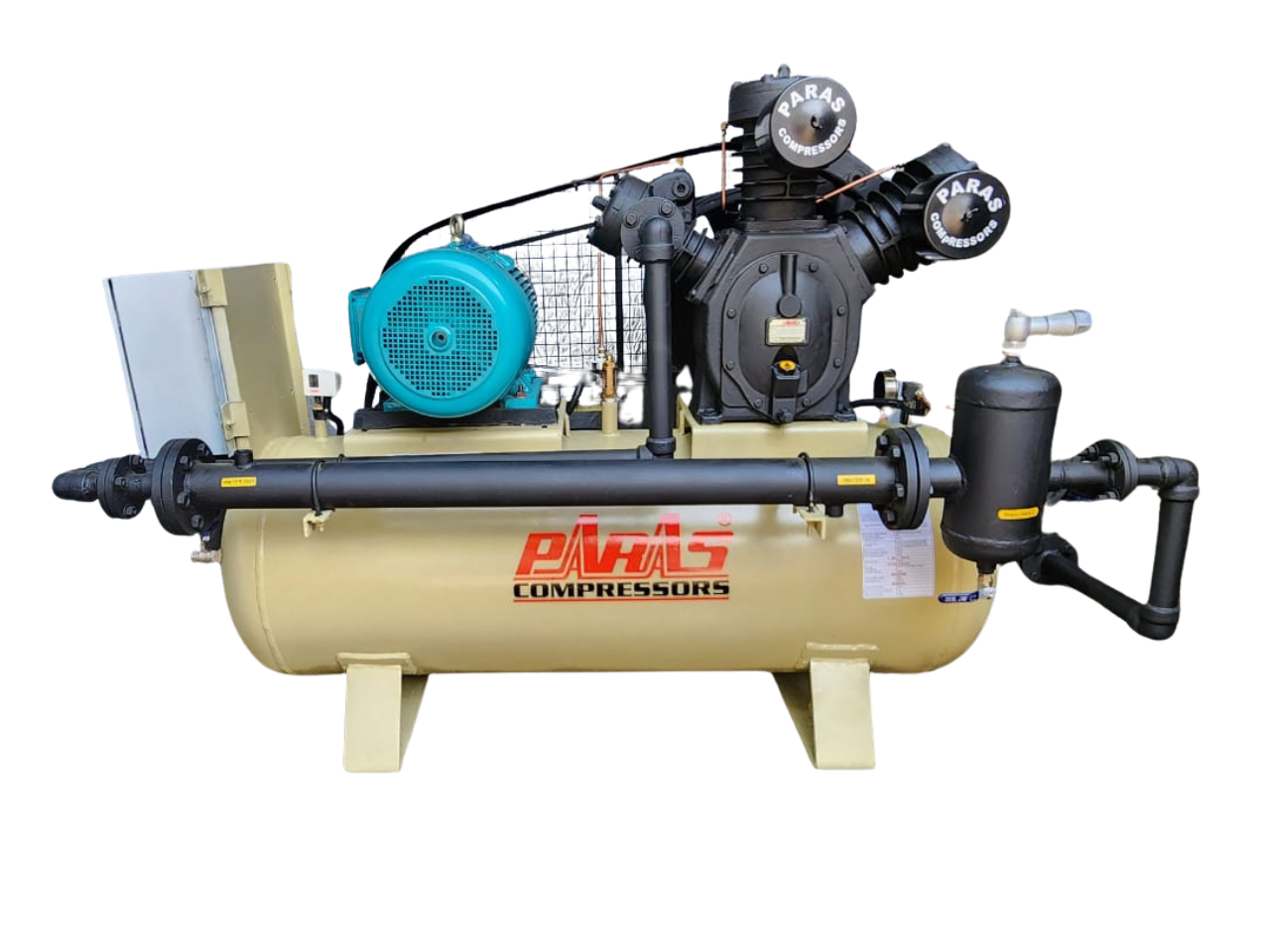

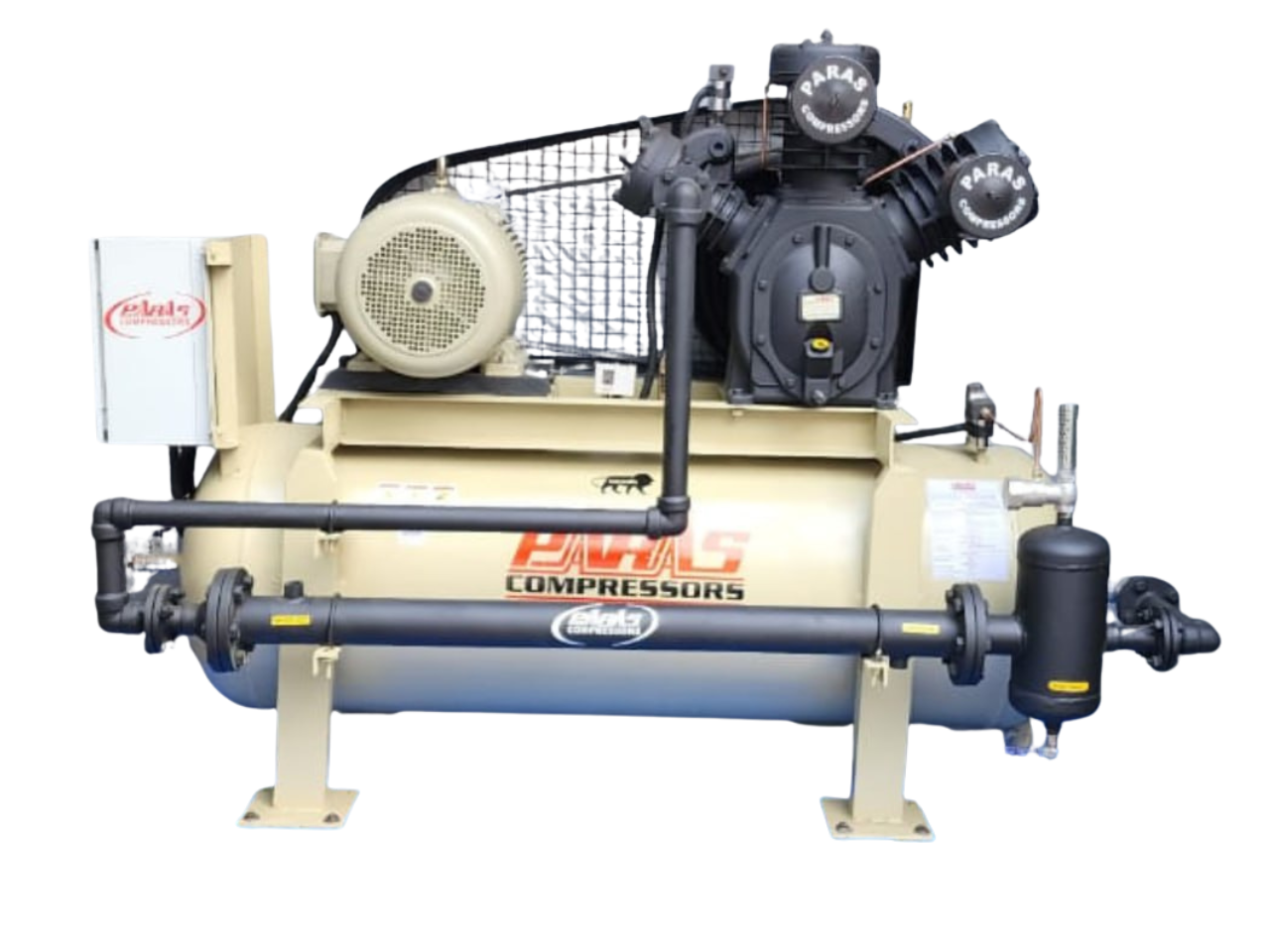

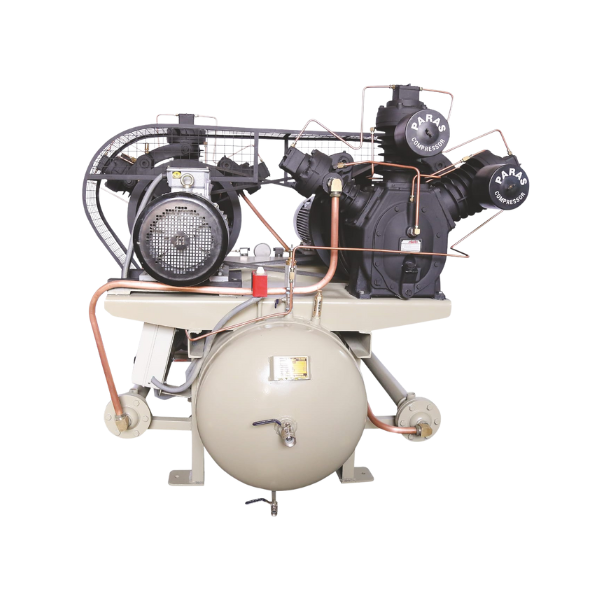

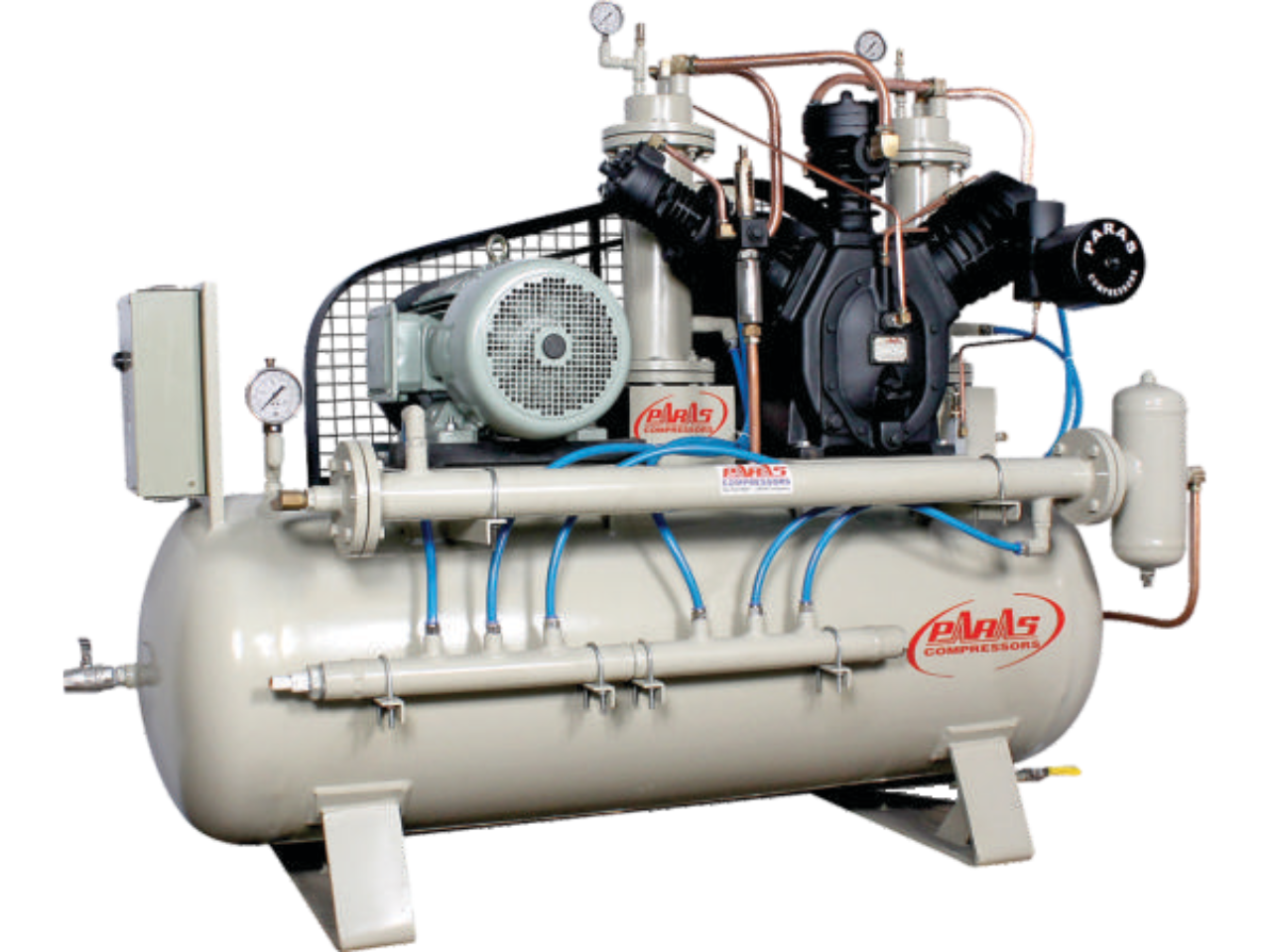

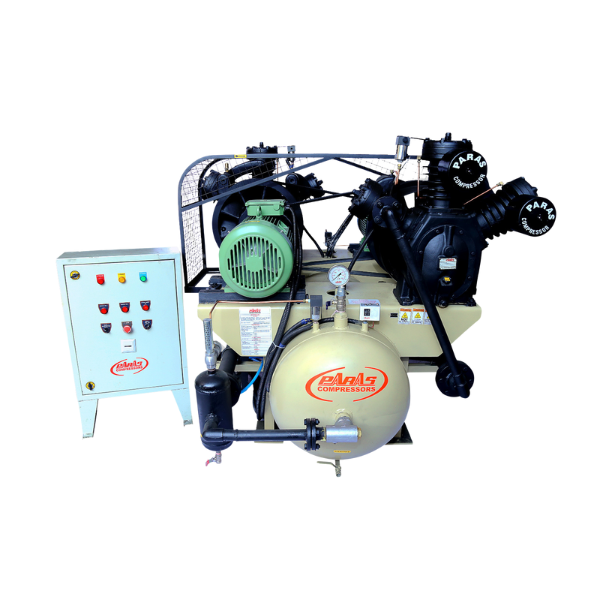

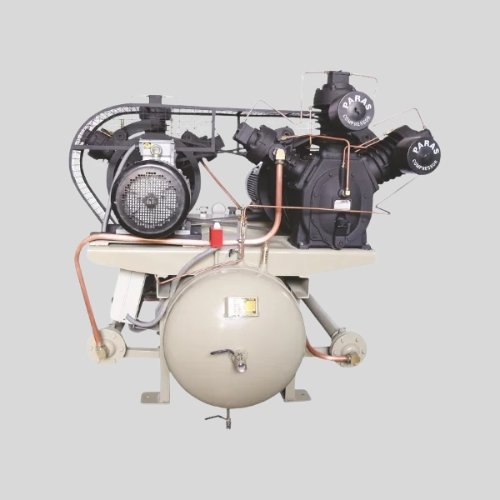

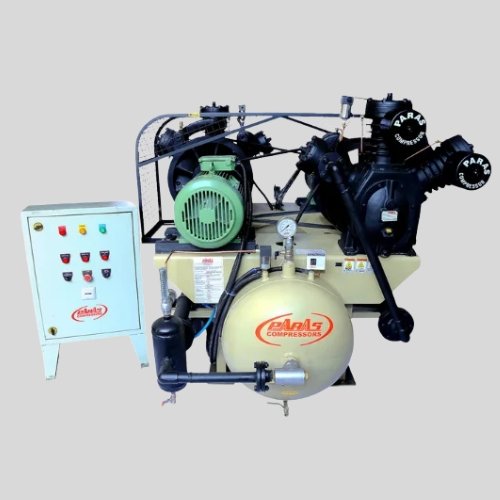

Multi Stage Compressor
Multi-stage air compressors act as the industrial workhorses of the sector, specifically engineered to tackle the most punishing operational environments. These performance champions are designed for high-pressure applications, capable of reaching an impressive 70.31 kg / cm²g (1000 psig). As an Ahmedabad, Gujarat-based multi stage compressor manufacturer, we have integrated this power into a refined, energy-efficient architecture that minimizes heat buildup and maximizes volumetric output.
Whether your facility requires a high-capacity industrial multi stage compressor or a robust multi stage portable compressor for dynamic project sites, we deliver hardware built for survival. As a premier multi stage compressor manufacturer, supplier, and exporter in India, our commitment is to provide the best multi stage air compressor technology that bridges the gap between raw power and reliability. By choosing us as your multi stage air compressor supplier, you are equipping your operations in Gujarat and across India with a surge-free, high-pressure air source that is designed to endure the most demanding production cycles.
Advantages of Multi-Stage Approach:
- Higher Pressure Output: Delivers significantly higher pressure for demanding applications.
- Enhanced Efficiency: Efficient intercooling between stages reduces wear and tear.
- Diverse Applications: Valve testing, Diesel engine starting, Lab work, Space/Aviation, Air Blast Circuit Breaking, and Military support.
TECHNICAL SPECIFICATIONS (MULTI-STAGE)
| MODEL | HP | CYL | DISP (CFM) | FAD (CFM) | MAX PSI | KG/CM² | RECEIVER (L) |
|---|
| PC-23-2313 | 2 | 2 | 7.4 | 4.8 | 500 | 35.15 | 100/150 |
| PC-23-2515 | 2 | 2 | 10.8 | 6.4 | 500 | 35.15 | 100/150 |
| PC-23-71T4 | 5 | 2 | 13.1 | 6.4 | 1000 | 70.00 | 200/300 |
| PC-23-7T2 | 7.5 | 2 | 24 | 14.3 | 500 | 35.15 | 300 |
| PC-23-7T2 | 10 | 2 | 36 | 23 | 285 | 20 | 300 |
| PC-23-7T2 | 10 | 2 | 31.95 | 18.35 | 500 | 35.15 | 300 |
| PC-23-7T2 | 12.5 | 2 | 36 | 29 | 355 | 25 | 300/500 |
| PC-23-7T2 | 12.5 | 2 | 36 | 21.6 | 500 | 35.15 | 300/500 |
| PC-23-7T2 | 15 | 2 | 40.5 | 24.3 | 500 | 35.15 | 300/500 |
| PC-23-15T2(SP) | 15 | 3 | 41.2 | 23.4 | 425 | 30 | 500 |
| PC-23-15T2 | 15 | 3 | 35.75 | 26.6 | 1000 | 70 | 500 |
| PC-23-15T2(SP) | 20 | 3 | 49.5 | 42 | 425 | 30 | 500 |
| PC-23-15T2 | 20 | 3 | 49.5 | 36.9 | 1000 | 70 | 500 |
| PC-23-15T2 | 15 | 3 | 41.2 | 31.4 | 1500 | 35.15 | 500 |
| PC-23-15T2 | 20 | 3 | 49.5 | 37.7 | 500 | 35.15 | 500 |
| PC-23-15H | 15 | 3 | 54.50 | 45 | 355 | 25 | 500 |
| PC-23-20H | 20 | 3 | 72.68 | 52 | 355 | 25 | 500 |
| PC-23-25H | 25 | 3 | 98.5 | 70 | 355 | 25 | 500 |
